Quality control
The run completed successfully - so now what?
In this section we will cover:
- Signal to sequence workflow
- Run directory structure
- FAST5 files
- Basecalling
- Basecalling results
You will learn to:
- Take a run summary file and extract QC data
- Interpret this data
1. Signal to sequence workflow

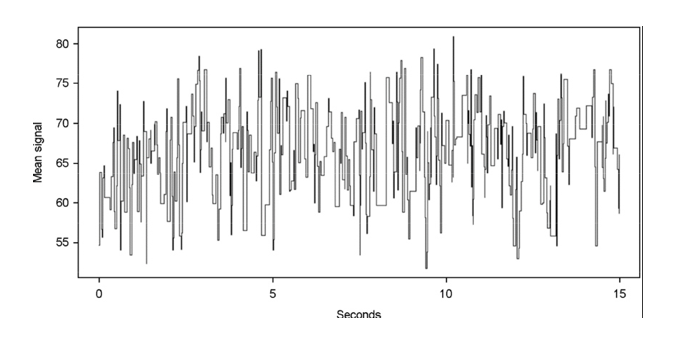

The below image represents the process of translating raw electrical signal data from an ONT sequencer to DNA sequence.
We are going to learn how to do this!
But… before we get too technical, lets take a look at how Nanopore’s machines write data!
2. Run directory structure
All nanopore data is written to a specific run directory. Open up a terminal and change to the example directory below…
cd /home/participant/Course_Materials/data/quality_control/example_runs/1.raw_data/
… and check it out using tree!
tree -d .
(Hint: “.” is a shortcut for the current directory you are in)
(Hint 2: “-d” means the tree command lists directories only)
(Hint 3: at home mac users might need to install the tree command!)
You should see something like this:
.
└── 20180830_PAD01151
└── data
└── reads
├── 0
└── 1
5 directories
This is what a raw directory structure will look like if you don’t let the ONT software call it for you!
Lets take a closer look at the reads/ directory. This is where the sequencer writes raw data:
ls 20180830_PAD01151/data/reads/
You should see two directories: 0/ and 1/.
ONT machines write reads in batches, here batch size is 100 files. Normally, batch size would be around 5000 to 8000. This is to keep the number of files in each directory reasonable for the computers filesystem.
Take a look into read directory 0/:
ls 20180830_PAD01151/data/reads/0/
You should see a list of files ending with .fast5.
3. FAST5 files
Nanopore writes read data to a file format they call FAST5
1 read = 1 .fast5 file
FAST5 files are in fact HDF5 files. These are compressed binary files which store data in a structured way, allowing fast random access to subsets of the data.
This is where electronic signal data from the sequencer is stored.
Lets look at the structure of a FAST5 file using the h5ls command:
h5ls ./20180830_PAD01151/data/reads/0/PCT0045_20180830_0004A30B002402F4_2_E3_H3_sequencing_run_Cam_6_90217_read_106_ch_731_strand.fast5
This shows the top level data keys:
PreviousReadInfo Group
Raw Group
UniqueGlobalKey Group
We can view the sub-keys by recursively (-r) listing the file:
h5ls -r ./20180830_PAD01151/data/reads/0/PCT0045_20180830_0004A30B002402F4_2_E3_H3_sequencing_run_Cam_6_90217_read_106_ch_731_strand.fast5
Outputs:
/ Group
/PreviousReadInfo Group
/Raw Group
/Raw/Reads Group
/Raw/Reads/Read_106 Group
/Raw/Reads/Read_106/Signal Dataset {34897/Inf}
/UniqueGlobalKey Group
/UniqueGlobalKey/channel_id Group
/UniqueGlobalKey/context_tags Group
/UniqueGlobalKey/tracking_id Group
We can also dump and view the entire contents of a .fast5 to text:
h5dump ./20180830_PAD01151/data/reads/0/PCT0045_20180830_0004A30B002402F4_2_E3_H3_sequencing_run_Cam_6_90217_read_106_ch_731_strand.fast5 | less -S
(Hint: use the up and down arrows to scroll through the file)
(Hint 2: press q to exit less, a text reading program)
4. Basecalling
This is the process of translating raw electrical signal data from an ON sequencer to DNA sequence. Basecalling is a critical step in the analysis workflow as poor basecalling results in poor sequence data.
Many basecallers exist - but for now we will be using Guppy v3.4.5 developed by Oxford Nanopore.
For basecalling it is important to know which Flow Cell and Library Prep Kit was used.
To see all the combinations which Guppy can handle use:
guppy_basecaller --print_workflows | head -n 10
| (Hint: the “** | head -n 10** part of the command shows just the top 10 combinations, there are many more.) |
This will list all the supported combinations of flowcell and library prep kit that Guppy can basecall.
Available flowcell + kit combinations are:
flowcell kit barcoding config_name
FLO-FLG001 SQK-RNA003 rna_r9.4.1_120bps_hac
FLO-MIN106 SQK-RNA003 rna_r9.4.1_120bps_hac
FLO-MIN107 SQK-RNA003 rna_r9.4.1_120bps_hac
FLO-MIN107 SQK-DCS108 dna_r9.5_450bps
FLO-MIN107 SQK-DCS109 dna_r9.5_450bps
FLO-MIN107 SQK-LRK001 dna_r9.5_450bps
FLO-MIN107 SQK-LSK108 dna_r9.5_450bps
FLO-MIN107 SQK-LSK109 dna_r9.5_450bps
So lets basecall!
guppy_basecaller --input_path ./20180830_PAD01151/data/reads/ --recursive --save_path ./20180830_PAD01151/data/basecalled --fast5_out --flowcell FLO-PRO002 --kit SQK-LSK109
Interesting fact: You have just started up a machine learning algorithm. Guppy, alongside almost all current nanopore basecallers have a neural network at their core.
4.i. A comment about basecallers
As previously mentioned many basecallers are available.
The main performance marker of a basecaller that we care about is the overall Assembly Identity or how much a final alignment matches the reference.
We can also take a look at the assembly length bias which tells us if a given basecaller is prone to reference insertions or deletions.
Further reading: A great comparison of basecallers exists here
4.ii. So what do we recommend?
In our group we have never used anything other than the most up to date ON basecalling algorithm (i.e. Guppy).
5. Basecalling results
Lets take a look inside the new basecalled/ directory we just created:
ls -l 20180830_PAD01151/data/basecalled
total 2020
-rw-r--r-- 1 participant docker 376482 Feb 12 17:11 fastq_runid_5f42e62fe05de2c3f4e892def6936adeb53cf710_0.fastq
-rw-r--r-- 1 participant docker 484314 Feb 12 17:11 fastq_runid_5f42e62fe05de2c3f4e892def6936adeb53cf710_1.fastq
-rw-r--r-- 1 participant docker 510656 Feb 12 17:11 fastq_runid_5f42e62fe05de2c3f4e892def6936adeb53cf710_2.fastq
-rw-r--r-- 1 participant docker 431054 Feb 12 17:11 fastq_runid_5f42e62fe05de2c3f4e892def6936adeb53cf710_3.fastq
-rw-r--r-- 1 participant docker 84282 Feb 12 17:11 guppy_basecaller_log-2020-02-12_17-08-00.log
-rw-r--r-- 1 participant docker 56767 Feb 12 17:11 sequencing_summary.txt
-rw-r--r-- 1 participant docker 86421 Feb 12 17:11 sequencing_telemetry.js
drwxr-xr-x 4 participant docker 4096 Feb 12 17:08 workspace
Our freshly called “sequence” data now sits inside fastq_runid_5f42e62fe05de2c3f4e892def6936adeb53cf710_0_0.fastq.
Lets take a quick look at it:
less -S 20180830_PAD01151/data/basecalled/fastq_runid_5f42e62fe05de2c3f4e892def6936adeb53cf710_0.fastq
This is a standard format fastq file which can now be analysed downstream. We will cover fastq’s in greater detail later!
(Hint: press q to exit less, that text reading program from before!)
Another important file is sequencing_summary.txt. This contains A LOT of data about the sequencing run. Lets take a look.
less -S 20180830_PAD01151/data/basecalled/sequencing_summary.txt
(Hint: again, q to quit less!)
Quick breather!!!
What should I know at this point?:
-
We now understand how raw squiggle data is converted into to A’s T’s C’s and G’s.
-
We can take some .fast5 files, run a basecaller, and find the results.
-
We have also learned that there are many different tools for basecalling the data. However, for general use Guppy from Oxford Nanopore is fine.
-
It is also recommended that you let the sequencing software handle this automatically for you.
What don’t we know:
-
How can we access the data contained in sequencing_summary.txt.
-
How do we interpret this data?
Now, back to work!
6. Take a run summary file and extract QC data
Many tools for run QC have been developed by the Nanopore sequencing community. We will now learn how to use one of them!
Before we begin, lets change directory.
cd ~/Course_Materials/data/quality_control/QC_script/
We can then open up a file browser to make things easy.
open .
This should open up a directory, and we can see that there are multiple files in this “package”. The first file we are interested in is the config.yaml file.
Hint: don’t worry .yaml is just a fancy text file!
This file contains the configuration for the QC plotting tool.
On opening the file you should see the following configuration lines at the top:
inputFile: "./RawData/lambda_sequencing_summary.txt.bz2"
barcodeFile: "./RawData/lambda_barcoding_summary.txt.bz2"
#inputFile: "../example_runs/2.promethion_run/VWD1108/20191202_1317_1-E11-H11_PAE13924_73938d1f/PCT0099_20191202_131743_PAE13924_promethion_sequencing_run_VWD1108_sequencing_summary.txt"
#barcodeFile: ""
basecaller: "Guppy 2.1.3"
flowcellId: "PAE24233"
tutorialText: FALSE
Notice that the input file points to a version of the sequencing_summary.txt
We are going to leave this alone for now!
The second file we are interested in is the Nanopore_SumStatQC.Rmd file. Click it and Rstudio should open up.
Press the “Knitr” button at the top of the page and wait for magic!
Disclaimer: If magic does not happen, R should have printed a .html file - open it by pasting the below in the terminal!
open Nanopore_SumStatQC.html
7. Interpret this data
We can read through the report to get an understanding of QC metrics!
8. Bonus step - a real run!
Lambda controls are so boring. Lets take a look at the QC report of a PromethION run from a patient with a rare bleeding disorder!!!
Tree the following directory:
tree ../example_runs/2.promethion_run
Hint: “..” is a shortcut for “one directory up”
You should see:
../example_runs/2.promethion_run
└── VWD1108
└── 20191202_1317_1-E11-H11_PAE13924_73938d1f
├── PCT0099_20191202_131743_PAE13924_promethion_sequencing_run_VWD1108_duty_time.csv
├── PCT0099_20191202_131743_PAE13924_promethion_sequencing_run_VWD1108_sequencing_summary.txt
├── PCT0099_20191202_131743_PAE13924_promethion_sequencing_run_VWD1108_throughput.csv
├── fast5_fail
│ ├── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_29.fast5
│ └── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_86.fast5
├── fast5_pass
│ ├── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_787.fast5
│ └── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_991.fast5
├── fast5_skip
│ └── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_0.fast5
├── fastq_fail
│ ├── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_433.fastq
│ └── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_490.fastq
├── fastq_pass
│ ├── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_816.fastq
│ └── PAE13924_3a68f5baa685d37c37fb291fde3b6f0c6b02573c_991.fastq
├── final_summary.txt
├── report.md
└── report.pdf
This is what a “run” directory looks like when you let the sequencer take care of data processing.
You will notice that .fast5 and .fastq files have been automatically separated into pass and fail directories.
Lets produce the report for this run now. Open up the config.yaml file, you should see the below.
inputFile: "./RawData/lambda_sequencing_summary.txt.bz2"
barcodeFile: "./RawData/lambda_barcoding_summary.txt.bz2"
#inputFile: "../example_runs/2.promethion_run/VWD1108/20191202_1317_1-E11-H11_PAE13924_73938d1f/PCT0099_20191202_131743_PAE13924_promethion_sequencing_run_VWD1108_sequencing_summary.txt"
#barcodeFile: ""
basecaller: "Guppy 2.1.3"
flowcellId: "PAE24233"
tutorialText: FALSE
# **inputFile** - this should be the sequencing_summary.txt from Guppy etc
# move your own sequence_summary.txt file (or concatenation thereof) to the
# RawData folder to run analysis on your own sequence collection
# **barcodeFile** - if Guppy_barcoder has been used to demultiplex library,
# move the barcoding_summary.txt file to the RawData folder and update variable
# **basecaller** and **flowcellId** - are used for presentation in report
# please update to correspond to your sequence analysis
# change the **tutorialText** value to FALSE to mask tutorial instructions
Delete the entire contents, copy the below in, and save the file.
inputFile: "../example_runs/2.promethion_run/real_vwd/20191202_1317_1-E11-H11_PAE13924_73938d1f/PCT0099_20191202_131743_PAE13924_promethion_sequencing_run_real_vwd_sequencing_summary.txt"
barcodeFile: ""
basecaller: "Guppy 2.1.3"
flowcellId: "PAE24233"
tutorialText: FALSE
# **inputFile** - this should be the sequencing_summary.txt from Guppy etc
# move your own sequence_summary.txt file (or concatenation thereof) to the
# RawData folder to run analysis on your own sequence collection
# **barcodeFile** - if Guppy_barcoder has been used to demultiplex library,
# move the barcoding_summary.txt file to the RawData folder and update variable
# **basecaller** and **flowcellId** - are used for presentation in report
# please update to correspond to your sequence analysis
# change the **tutorialText** value to FALSE to mask tutorial instructions
Now press the “Knitr” button again the top of the page and wait for some …slightly slow… magic!
You can print these reports to .pdf used the standard browser method if required.
If you want to make you’re own QC pipeline or just see how this one works, read through the Nanopore_SumStatQC.Rmd script.
Final Comment

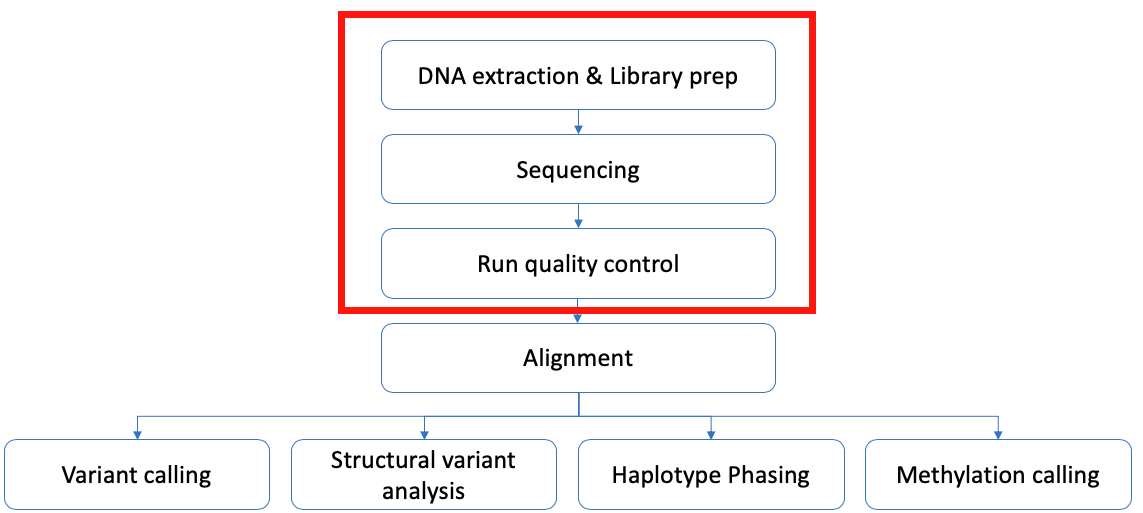

This was a VERY basic overview of nanopore data analysis. Below is a diagram showing the parts of an overall workflow we have covered so far.
References & Reading
Excellent comparison of basecallers: https://genomebiology.biomedcentral.com/articles/10.1186/s13059-019-1727-y
Oxford Nanopore downloads: https://community.nanoporetech.com/downloads
Oxford Nanopore tutorials: https://community.nanoporetech.com/knowledge/bioinformatics/
Specific QC tutorial: https://github.com/nanoporetech/ont_tutorial_basicqc
How are Phred scores calculated: https://en.wikipedia.org/wiki/Phred_quality_score
